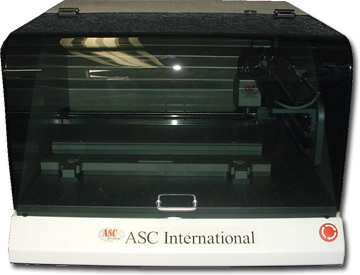

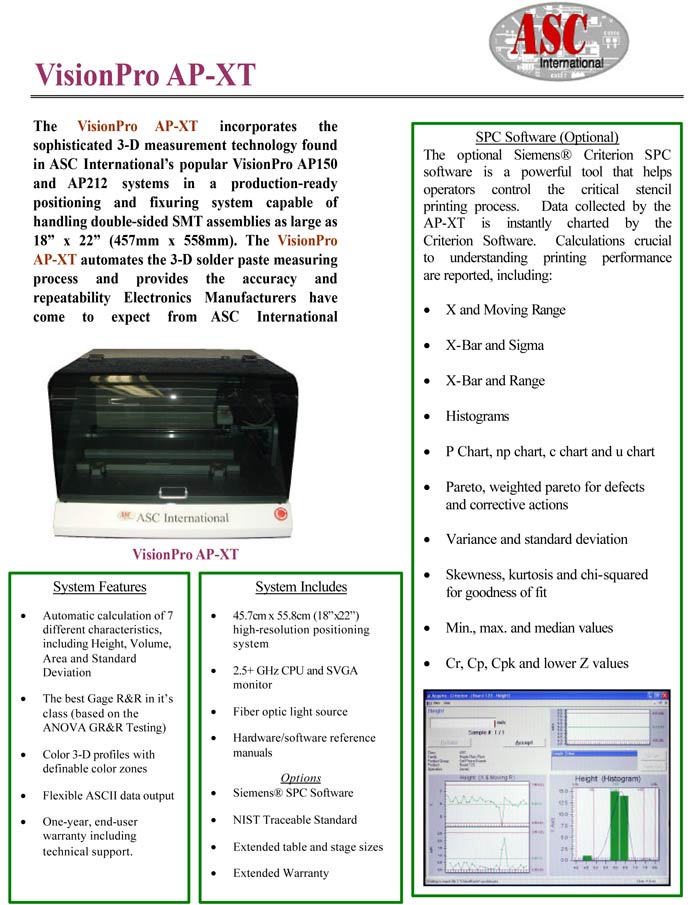

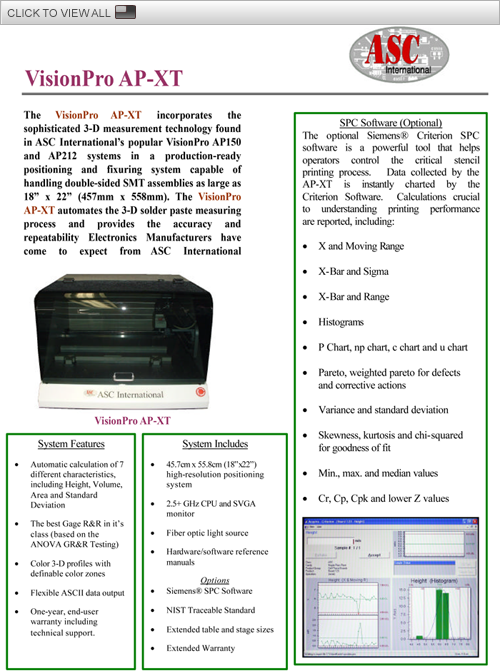

VisionPro APXT

VisionPro APXT incorporates the sophisticated 3D measurement technology found in ASC International's VisionPro AP500 systems in a production-ready positioning and fixturing system capable of handling double-sided SMT assemblies as large as 18" x 22" (450 mm x 550 mm). APXT automates the 3D solder paste measuring process and provides the accuracy and repeatability Electronic Manufacturers have come to expect from ASC International.

VisionPro APXT

System Features:

  • Fully Automated Height/Volume Measurements
  • Integrated SPC Run Charts and Data Reports
  • Color 3D Profiles of Measured Features
  • Windows® XP Pro / Windows 7 OS
  • One-Year, End-User Warranty

System Includes:

  • VisionPro 3D Sensor
  • Dell® 2.5+ GHz PC and LCD Monitor
  • 18" x 22" (450 mm x 550 mm) Inspection
  • Optional NIST Calibration Standard
  • Hardware/Software Reference Guides
